As the electric vehicle (EV) industry accelerates its growth, ensuring the reliability, safety, and longevity of EV components is paramount. One critical area is the protection of wiring harnesses, which must endure harsh environments, temperature extremes, and mechanical stress.
PTFE heat shrink tubing has emerged as an ideal solution for safeguarding electric vehicle wiring, offering unmatched performance and durability.
Why Electric Vehicles Need Specialized Wiring Protection
Electric vehicles rely heavily on electrical systems to operate everything from battery management to motor control and onboard electronics. Their wiring harnesses are exposed to:
- High temperatures: EV batteries and power electronics can generate heat well beyond what conventional internal combustion engine vehicles produce.
- Chemical exposure: Battery electrolytes, lubricants, and road salts can degrade ordinary insulating materials.
- Mechanical abrasion and vibration: Wiring is subjected to continuous movement and friction inside the vehicle.
- Electrical interference: High voltage and current demand superior insulation and shielding to prevent shorts and interference.
To meet these challenges, EV wiring protection must go beyond traditional materials, combining thermal, chemical, and mechanical robustness with superior electrical insulation.
Advantages of PTFE Heat Shrink Tubing for EV Wiring
1. Exceptional Thermal Resistance
PTFE heat shrink tubing withstands continuous operating temperatures up to approximately 260°C (500°F) and short bursts up to 300°C (572°F). This high-temperature tolerance ensures the tubing protects wires near hot battery packs, inverters, and charging connectors without degradation or melting.
2. Superior Chemical and Corrosion Resistance
PTFE is inert to almost all chemicals, acids, and solvents, making it highly resistant to battery electrolytes, automotive fluids, and road contaminants. This protects wiring from corrosion and chemical damage, which are common failure points in EV electrical systems.
3. Outstanding Electrical Insulation
PTFE offers a very high dielectric strength and excellent electrical insulating properties, ensuring safe transmission of high voltages and currents used in EV powertrains. It prevents electrical shorts, arcing, and electromagnetic interference.
4. Mechanical Durability and Flexibility
The tubing is flexible yet tough, able to absorb vibrations and resist abrasion from movement or contact with other vehicle parts. Its tight shrink fit prevents abrasion damage while maintaining flexibility for wire routing.
5. Flame Retardancy and Low Smoke Emission
PTFE heat shrink tubing is inherently flame retardant and emits very low smoke and toxic gases in the event of fire, enhancing vehicle safety.
6. Wide Size Range and Customization
PTFE heat shrink tubing is available in a variety of diameters, shrink ratios (typically 2:1 or 3:1), and lengths to accommodate different wire sizes and harness configurations common in EVs.
Typical Applications of PTFE Heat Shrink Tubing in Electric Vehicles
- Battery wiring harnesses: Insulating and protecting high-voltage cables connected to battery modules.
- Power electronics wiring: Shielding wires near inverters, converters, and charging ports from heat and chemical exposure.
- Sensor cables: Providing chemical and moisture resistance for delicate sensor wires.
- High-voltage connectors: Insulating and protecting connectors carrying hundreds of volts safely.
Installation and Processing Considerations

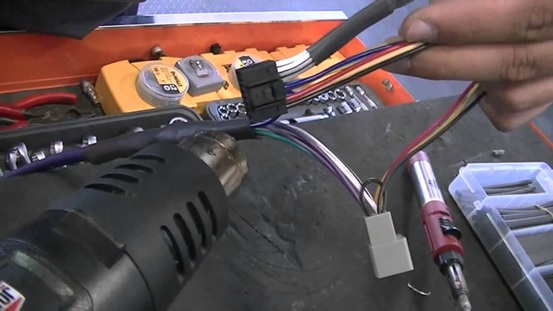

PTFE heat shrink tubing requires a controlled heat source, such as a hot air gun or oven, for uniform shrinking without damaging the tubing or underlying wires. The tubing shrinks radially and longitudinally, conforming closely to the wire bundle, sealing out moisture and contaminants.
While PTFE tubing offers many benefits, it is generally more expensive than conventional polyolefin heat shrink tubing. However, for critical EV applications where reliability and safety are non-negotiable, the investment is justified.
Conclusion
With the rapid expansion of electric vehicles worldwide, advanced materials like PTFE heat shrink tubing are crucial in ensuring electrical wiring protection under demanding conditions. Its combination of high thermal tolerance, chemical inertness, excellent electrical insulation, and mechanical durability makes PTFE tubing the go-to choice for protecting EV wiring harnesses.
